Elegant Bathrooms

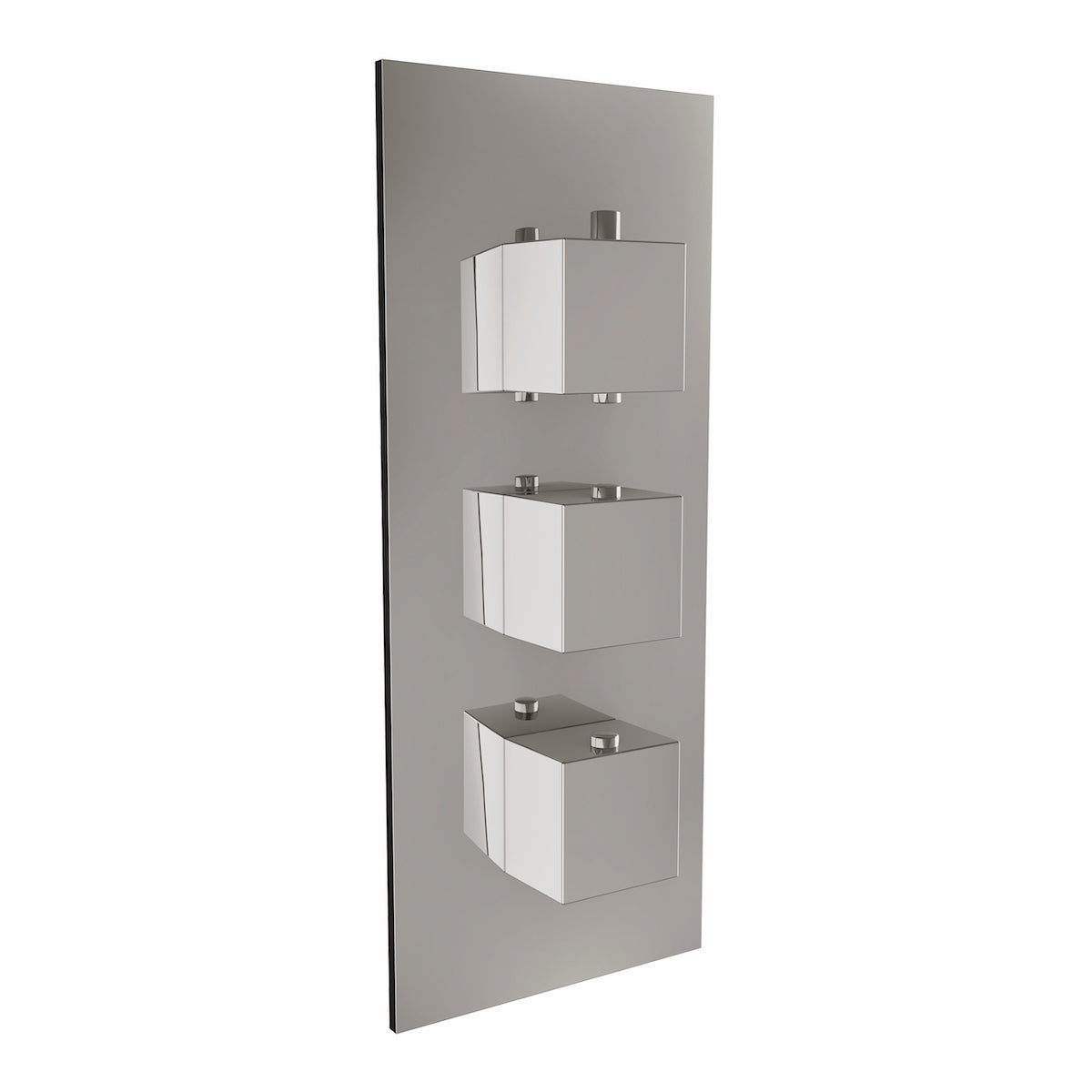

Triple Square Handle, 3 Outlet Concealed Valve with Diverter
Triple Square Handle, 3 Outlet Concealed Valve with Diverter
Regular price
£315.00 GBP
Regular price
Sale price
£315.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Triple Square Handle, 3 Outlet Concealed Valve with Diverter
Finish Chrome
Material Brass / Stainless Steel
Installation In Wall
Tap / Shower specification
WRAS Approved
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
No
Number of tap holes required
N/a
Handle Type
Square
Swivel Spout
N/a
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP
Tap Hole Diameter (mm)
N/a
Tap Type description
In wall Thermostatic mixer
Includes Waste
N/a
Valve / Cartridge Type
Thermostatic & Quarter Turn Cartridge
Cartridge Spare code
H102V
Flow Rates
0.2bar (l/min)
6.5
0.5bar (l/min)
9.7
1bar (l/min)
14
2bar (l/min)
20.5
3bar (l/min)
27
Showering specification
Anti-Scald
Yes
Shower Diverter function
Yes
Number of outlets
2
Thermostatic Tempurature control
Yes
Cool Touch
No
Shower Handset funtions
N/a
Minimum Working Pressure
0.2
Maximum Working Pressure
0
Shape
N/a
Pipe Centres (mm)
N/a
Inlet Connection
3/4 BSP
Outlet Connection
1/2 BSP
Adjustable
N/a
Adjustment (mm)
0
Handle Type
Square
Spares Codes
Diverter Spares
T47002D-08 & T47052-08
Thermostatic cartridge Spares
H102V
